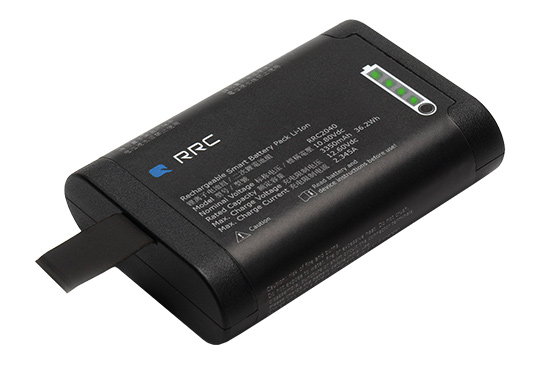

Picture only for reference

RRC2040

Standard battery pack RRC2040 (3S1P)
with 10.80V / 3.35Ah / 36.20Wh

  • Worldwide approvals and certification of safety standards
  • No development costs, fast time-to-market
  • Smart batteries with numerous features according to the SMBus specification
  • Integrated LED State of Charge (SoC) indicator
  • State-of-the-art lithium-ion cells with the market’s highest energy density
  • High discharge performance
  • JEITA charging profile optimization
  • Numerous and redundant safety features
  • Battery Life Management: protection against rapid cell ageing
  • Increased ESD protection up to 8.00kV
  • Up to 80% of initial capacity after 800 cycles

Please note that the listed product information and downloads are valid for the latest version of the RRC2040. Previous versions can be found here.

Are you looking for more information?

RRC2040

General
Delivery status (battery capacity)<30%

Compliance information

 IEC 62133 / CE / UL2054 / CAN ICES-003(B) /
NMB-003(B) / FCC / UKCA / PSE / KC / BSMI / Gost-R / CMIM / CQC / RCM / BIS / TISI / UN38.3 / RoHS / REACH

Operating temperature0°C to 45°C (charge)
-20°C to 60°C (discharge)

Storage temperature

-20°C to 50°C max.
-20°C to 25°C recommended

Communication bus

SMBus

Electrical Parameters

Nominal voltage

10.80V

Nominal capacity

3.35Ah

Initial impedance

< 350mΩ @ 1kHz at 25°C

Max. charge current

2.35A

Max. charge voltage

12.60V

Max. discharge current

4.00A

Battery cell configuration

3S1P

Battery chemistry

Lithium Ion (Li-Ion)

Battery Dimensions

Length

84.87mm +0.25/-0.25

Width

58.76mm +0.25/-0.25

Thickness

21.89mm +0.50/-0.25

Weight

170g

Contacts

+, C, D, T, -

Ingress protectionIP40
Safety Features

CUV (Cell Under Voltage)

Protection against deep discharge

COV (Cell Over Voltage)

Protection against over charge

OTC (Over Temperature in Charge)

Protection against overheating while charging

OTD (Over Temperature in Discharge)

Protection against overheating during discharging


POWERPAQ RRC2040 is approved worldwide
