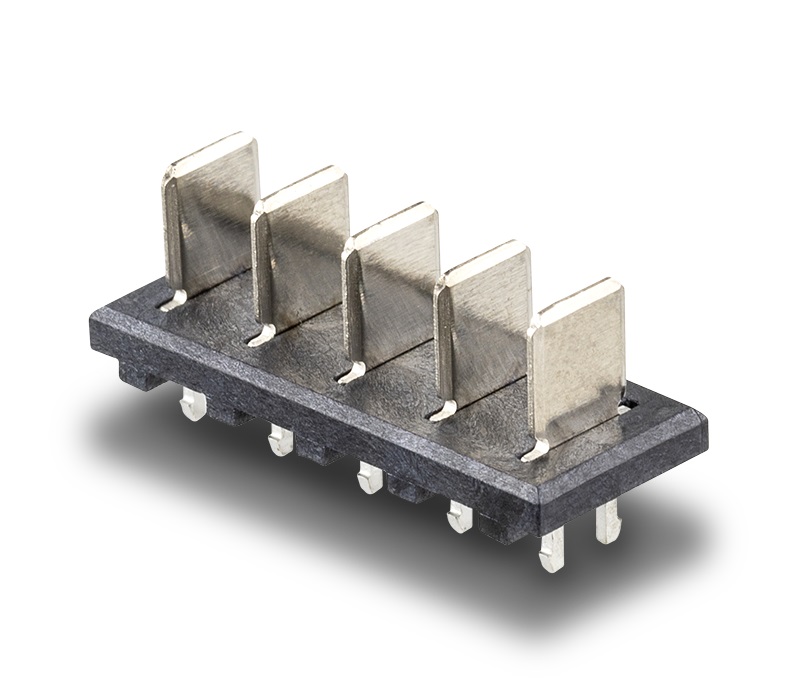

RRC-MC20-180-10

Gegenstecker für Batterien

  • Passend für RRC Standard-Batteriepacks RRC20xx
  • 10A max. Lade- und Entladestrom zur Batterie
  • 5-poliger male Stecker
  • 180° Leiterplattenmontage
  • 5mm pitch
  • RoHS kompatibel

Sie möchten weitere Informationen?

Downloads RRC-MC20-180-10

Produktdatenblatt RRC-MC20-180-10

Specifications

Ratings
Current10.00A max. / pin
Voltage

125.00V AC / 1min

Materials
Housing

Thermoplastic High
Temperature, UL 94V-0, black

Contacts

Copper Alloy

Plating

80μm Nickel on contact area
100μm Matte-Tin on solder tails

Operating Temperature-55°C to +105°C
Electrical Requirements
Contact Resistance0.03Ohm max.
Insulation Resistance0.10Ohm min. at 500VDC/2min
Dielectric withstanding voltage500.00V
Mechanical Requirements
Contact Retention Force500g min. / pin
Durability5000 cycles
Dimensions (LxWxH)

25.00mm x 11.70mm x 9.80mm

Weight3g
Physical Requirements
Solder Temperature

245°C ± 5°C

Immersion Period

3 ± 0.50sec

Regulatory Approvals

RoHS


RRC-MC11-90-2
RRC part number210518
PCB mounting180°
Packaging
24 connectors per tube
110 tubes per carton
