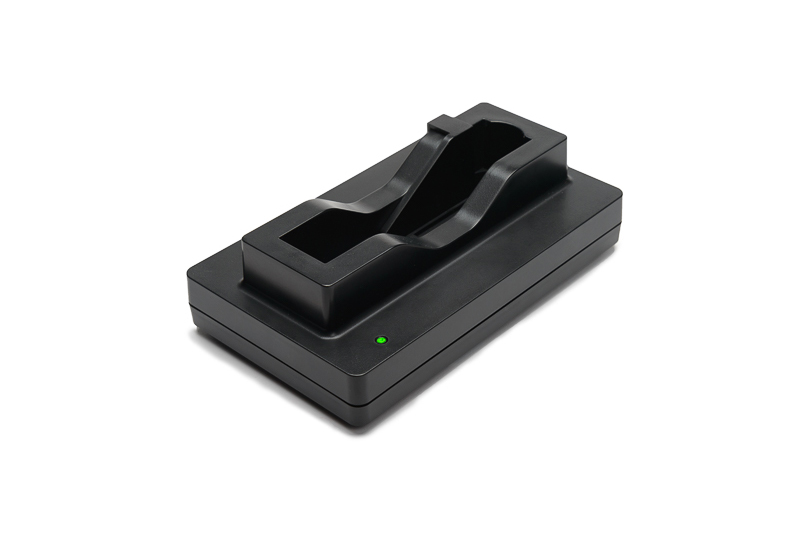

RRC-SMB-UBC-M

Medizinisches Standard-Batterieladegerät für SMBus kompatible Batterien

  • Universelles Schnellladegerät mit einem Ladeschacht
  • Für Standard-Batteriepacks der Bauform RRC20xx oder baugleiche SMBus-kompatible Batterien
  • Optimierter Ladeprozess für RRC Batterien:
    • Höhere Ladezyklen
    • Schnelleres Laden
  • Einfache Bedienbarkeit – Plug and Play
  • Automatische Identifikation des Batterietyps und Anpassung der Ladeparameter
  • Externes medizinisches AC/DC Netzteil für weltweiten Einsatz
  • Länderspezifische AC Eingangskabel auf Anfrage erhältlich
  • Optionaler DC/DC Auto-Adapter verfügbar

Sie möchten weitere Informationen?

Downloads RRC-SMB-UBC-M

Produktdatenblatt RRC-SMB-UBC-M

Specification RRC-SMB-UBC-M

Input
Voltage range19.00 - 26.00VDC
Current3.40A max.
Power65.00W
Output
Voltage range

0 - 17.40VDC

Current

0 – 4.80A

Voltage tolerance±1% max.
Current tolerance

±10% max. @1A, ±3% max. @4A

Protection

Short circuit, Overtemperature shutdown,
Input / Output overcurrent

Environmental
CoolingConvection cooled
Temperature

Operating: 0°C bis 40°C
Non-operating: -10°C to 70°C

Pressure & Altitude

Operating: 1060hPa to 795hPa (-382m to 2000m)
Non-operating: 1060hPa to 572hPA (-382m to 4570m)

Humidity5% to 95% r.F., non-considering
General
Efficiency~95% to 100% load
Battery type

For standard battery packs in form factor RRC20xx or similar SMBus compliant batteries

Green procurementRoHS 2011/65/EU
WEEE 2012/19/EU
Chinese RoHS
IndicatorMulti-color LED (green, red, orange)
Housing dimensions (LxWxH)151.00 x 90.00 x 43.00mm
Weight198g (without power supply)

One time Red/Orange/Green

Selftest: Charger is ready for use.

Red/Green blinking

Battery recognition and initialization.

Orange blinking

The battery is currently being calibrated.

Orange light

The inserted battery is of the correct type and is currently being charged.

Green light

The battery is charged and can be removed for use.

Red blinking

The battery is too hot or too cold to be charged without damage. If the battery is too cold it will be charged as soon as it has warmed up sufficiently. If the battery is too hot it should be removed to cool down.

Red light

The battery is damaged or it is a conventional battery which cannot be recharged.



In combination with included external AC/DC power supply (PS65M)



Regulatory approvals

EuropeCE

Electromagnetic Emissions

EuropeEN55011, EN55022, level B
 USAFCC15, class B

Electromagnetic Immunity

ESD immunityEN/IEC61000-4-2
 Electromagnetic field immunity EN/IEC61000-4-3
 EFT / BurstEN/IEC61000-4-4
 Surge

EN/IEC61000-4-5

 Conducted Immunity

EN/IEC61000-4-6

 Magnetic Fields

EN/IEC61000-4-8

 Voltage dips, short instrumentations & voltage variations

EN/IEC61000-4-11

 Immunity characteristics

EN55024

Specification external AC/DC power supply (PS65M)

Input

Voltage range

100 - 240VAC

Current

1.60A max.

Stand by power

No load < 0.21W @ 230.00 VAC

Output
Voltage range

19.00VDC

Power

65.00W max.

Current range

0 - 3.43 A

Protection

Over voltage, over current, short circuit

Environmental
Temperature

Operating: 0°C to 40°C
Non-operating: -10°C to 80°C

General
Efficiency

DoE VI, ErP (Stage 2), GEMS, NRCan, CEC, EPA

Ripple & Noise

0.19V (p-p)

Standard output connector

DC barrel jack (Ø5.50 x Ø2.50 x 9.50mm)

Housing dimensions (LxWxH)

119.00 x 60.00 x 36.00mm

Weight

310g

SafetyITECE, PSE
 MedicalcULus, T-mark. EN/IEC60601-1
EMIEuropeCE
 USA & CanadaFCC15 class B




Das Standard Batterieladegerät RRC-SMB-UBC-M ist weltweit zugelassen
