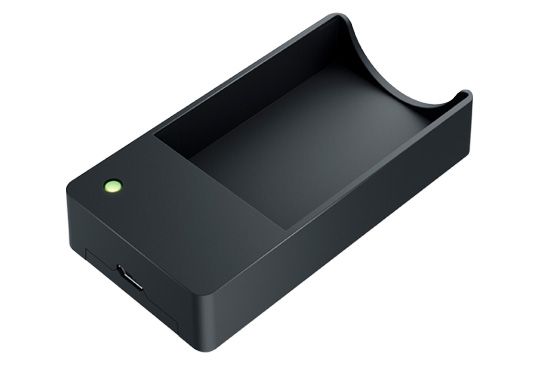

RRC-SCC1120

5.00W battery charger for RRC1120

  • Single bay 충전기
  • RRC1120용
  • 최적화된 충전 프로세스로 RRC 배터리 수명 연장
  • 쉬운 조작 – Plug and Play
  • 전 세계 사용 가능한 외부 전원 공급 장치

더 많은 정보를 찾고 계십니까?

RRC-SCC1120

Specification RRC-SCC1120

Input
Voltage5.00V nom.
Current1.00A nom.
Power5.00W
Output
Voltage

4.20VDC

Current

1.00A max.

Voltage tolerance

±1% max.

Current tolerance

±10% max. @1.00A

Protection

Short circuit, Battery over/under temperature, Charger over temperature, Charger timer

Environmental
CoolingConvection cooled
Temperature

Operating: 0°C to 40°C
Storage: -20°C to 80°C

Pressure & Altitude

Operating: 1060hPa to 795hPa (-382m to 2000m)
Storage: 1060hPa to 572hPA (-382m to 4570m)

Humidity10% to 90% r.H., non-condensing
General
IndicatorMulti-color LED (green, red, orange)
Battery types

Standard battery RRC1120

Green procurementRoHS 2011/65/EU, 2015/863/EU
WEEE 2012/19/EU
Chinese RoHS
Housing dimensions (LxWxH)39.80 x 76.30 x 15.00mm
Weight15.60g (excluding power supply)

Orange light

The inserted battery is of the correct type and is currently being charged.

Green light

The battery is charged and can be removed for use.

Red blinking

Battery detection phase

Red light

No battery inserted, battery over/under temperature error, charger over temperature error, battery over voltage error, battery charge time-out-error or input voltage too low



In combination with included external AC/DC power supply



Regulatory approvals

EuropeEN 62368-1 (CE)
 InternationalIEC 62368-1 (CB)

Electromagnetic Emissions

EuropeEN55011, EN55032, class B
 USAFCC15, class B

Electromagnetic Immunity

Electrostatic dischargeEN/IEC61000-4-2
 RF electromagnetic fieldsEN/IEC61000-4-3
 EFT / BurstEN/IEC61000-4-4
 Surge

EN/IEC61000-4-5

 Conducted RF disturbance

EN/IEC61000-4-6

 Electromagnetic Fields

EN/IEC61000-4-8

 Voltage Dips and Interrupts

EN/IEC61000-4-11

Specification external AC/DC power supply

Input

Voltage range

100.00 - 240.00 VAC ±10%, 50-60 Hz

Current

0.30A max.

Stand by power

No load < 0.10W

Output
Voltage range

5.00 VDC ±5%

Power

5.00W cont.

Current range

1.00A max.

Protection

Over current, short circuit

Environmental
Temperature

Operating: 0°C to 40°C
Storage: -20°C to 80°C

Humidity

Operating: 10% to 90% r.H., non-condensing

Storage: 5% to 95% r.H., non-condensing

Altitude

Opertaing: <2000m

Storage: <2000m

General
Efficiency

California's Energy Efficiency Level VI

Line / Load regulation

±1% / ±5%

Ripple & Noise

200.00mV (p-p)

Standard output connector

Micro USB

Housing dimensions (LxWxH)

43.55 x 40.90 x 45.30mm for US/CA/MX/JP

43.55 x 40.90 x 60.20mm for EU/RU

43.55 x 40.90 x 37.40mm for UK

43.55 x 40.90 x 60.20mm for KR
43.55 x 40.90 x 49.00mm for AU

43.55 x 40.90 x 45.50mm for CN

Weight

70g max.

Cable length1.00m

Approvals

EuropeCE
 InternationalCB
 USA & CanadacULus / cETLus
 MexicoNOM


Australia & New Zealand

RCM / SAA
 Russia (Customs Union)EAC
 KoreaKC
 ChinaCCC
 JapanPSE
 United KingdomUKCA

Standard Battery Charger RRC-SCC1120 is approved worldwide

United Kingdom
