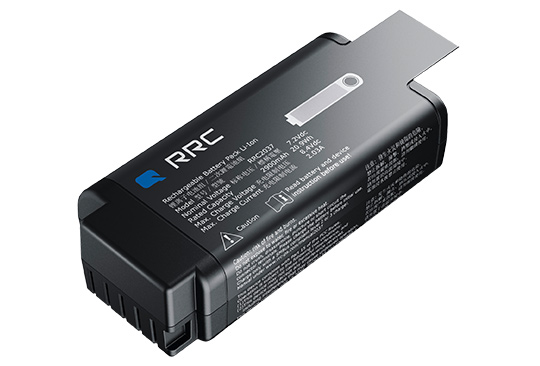

Picture only for reference

RRC2037

Standard battery pack RRC2037 (2S1P)
with 7.20V / 3.35Ah / 24.12Wh

  • 전 세계 안전 표준 승인 및 인증
  • 배터리 개발 비용이 없으며 빠른 시장 출시 가능
  • SMBus 사양에 따른 다양한 기능의 스마트 배터리
  • 통합 LED 충전 상태(SoC) 표시기
  • 시장에서 가장 높은 에너지 밀도를 자랑하는 최첨단 리튬 이온쎌
  • 최고의 방전 성능
  • JEITA 충전 프로필 최적화
  • 다수의 중복 안전 기능
  • 최대 8kV까지 ESD 보호 향상
  • 800 사이클 후 초기 용량의 최대 80%

아래 다운로드는 이전 버전의 RRC2037과 관련이 있습니다. RRC2037의 최신 버전에 대한 제품 정보 및 다운로드는 여기를 클릭하여 찾을 수 있습니다.

더 많은 정보를 찾고 계십니까?

RRC2037

General
Delivery status (battery capacity)<30%

Compliance information

IEC62133 / CE / UL2054 / FCC / UKCA / PSE / KC / BSMI / Gost-R / CMIM / CQC / RCM / BIS / TISI / CAN ICES-003(B) / NMB-003(B) / UN38.3 / RoHS / REACH

Operating temperature0°C to 45°C (charge)
-20°C to 60°C (discharge)

Storage temperature

-20°C to 50°C max.
-20°C to 25°C recommended

Communication bus

SMBus

Electrical Parameters

Nominal voltage

7.20V

Nominal capacity

3.35Ah

Initial impedance

Max. 120mΩ @ 1kHz at 25°C

Max. charge current

2.03A

Max. charge voltage

8.40V

Max. discharge current4.50A

Battery cell configuration

2S1P

Battery chemistry

Lithium Ion (Li-Ion)

Battery Dimensions

Length (min. – max.)

85.39mm +0.40/-0.40

Width (min. – max.)

41.99mm +0.40/-0.40

Thickness (min. – max.)

22.40mm +0.40/-0.25

Weight

121g

Contacts

+, C, D, T, -

Ingress protectionIP40
Safety Features

CUV (Cell Under Voltage)

Protection against deep discharge

COV (Cell Over Voltage)

Protection against over charge

OTC (Over Temperature in Charge)

Protection against overheating while charging

OTD (Over Temperature in Discharge)

Protection against overheating during discharging


POWERPAQ RRC2037 is approved worldwide
