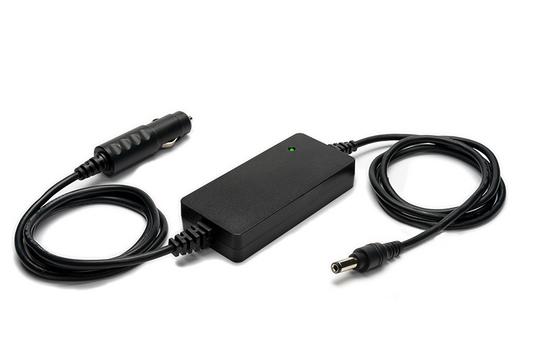

Der 90 Watt Auto-Adapter RRC-SMB-CAR für Pkws und Lkws.

RRC-SMB-CAR 90 Watt Car Adapter | RRC

90 Watt automobile power adapter

  • 90Watt연속 출력 전력(85W 주 출력 + 5W USB 출력)
  • 초소형 및 경량 차량용 어댑터
  • 넓은 입력 전압 범위 11-32V
  • USB 충전 포트
  • 전 세계적인 승인
  • 높은 안전 표준
  • 요청 시 개별 출력 커넥터
  • 자동차 및 트럭에 사용
  • RRC-SMB-UBC, RRC-SMB-MBC 및 RRC-SMB-FPC 충전기 전원을 공급

더 많은 정보를 찾고 계십니까?

Downloads RRC-SMB-CAR 90 Watt Car Adapter | RRC

RRC-SMB-CAR 90 Watt Car Adapter | RRC

Specification

Input
Voltage range11.00 - 32.00VDC
Switch off voltage10.00VDC
Standby currentTypical 40.00mA @ 11.00V input
Typical 80.00mA @ 32.00V input
Input fuse12.00A (in CLP)
ProtectionReverse polarity (input fuse CLP),
Under voltage protection
Over temperature protection
(latch-off reset)
Output
Output 1 (main)
Voltage range24.00VDC nominal
Power

95.00W max.
90.00W cont. (85W + 5W USB-A)

Initial set tolerance

±3% max.

Load regulation

- 80mV max. / A

Line regulation

±1% max.

Ripple & noise

< 0.20V pk-pk

Current limitConstant current, 6.00A max.
Protection

Short circuit
Over current protection (current limitation)
Over voltage protection (latch-off reset)
Over temperature protection (latch-off reset)

Output 2 (USB)
Voltage5.00VDC nominal
Current / Power1.00A max. / 5.00W max.
Total tolerance

±5% max.

Protection

Short circuit
Over current protection

Environmental

CoolingConvection cooled
Temperature

Operating: -20°C to 40°C
Non-operating: -40°C to 85°C

Pressure & altitude

Operating: 1200hPa to 795hPa (max. 2000m above sea level)
Non-operating: 1200hPa to 115hPa ()max. 15000m above sea level

Humidity5 to 95% r.H., non condensing
General
Input connector

Cigarette lighter adapter (CLP)

Output connector (output 1)

DC-Plug OD 5.50mm ID 2.10mm

Output connector (output 2)

USB receptacle, Type A

Efficiency

typical 96% at 100% load

MTBF

>20000h @ 25°C ambient temperature and GB per MIL-HDBK217F

Green procurementWEEE, RoHS
Indicator green LED

On: Power on
Flashing: Failure
Off: Power off

Ingress protection rating

IEC60529, IP40

Regulatory approvalsEuropeCE
 International

CB Report IEC60950-1

 USA & Canada

cULus UL60950-1

 Australia & New ZealandRCM
Electromagnetic emissionsEurope

EN55022 class B, EN55024

 USA & CanadaFCC15 class B
Electromagnetic immunityESD immunity

IEC61000-4-2, 4kV contact / 8kV air

 Electromagnetic field immunity

IEC61000-4-3, 80-2700MHz, 3V/m, AM 80%/1kHz

 Electrical fast transient/burst immunity test

IEC61000-4-4, +/-1kV, 5/50ns

 ISO-Impulses

ISO7637-2, pulses 1, 2a, 2b, 3a, 3b, 4

 UNECE vehicle regulationE13 ECE Reg. 10

- Other approvals on request

Housing dimensions (LxWxH)

115.00 x 53.70 x 21.50mm, without cables and connectors

Input cable length

100cm ±5%

Output cable length

100cm ±5%

Weight

250g, with cables and connectors


RRC-SMB-CAR is approved worldwide
