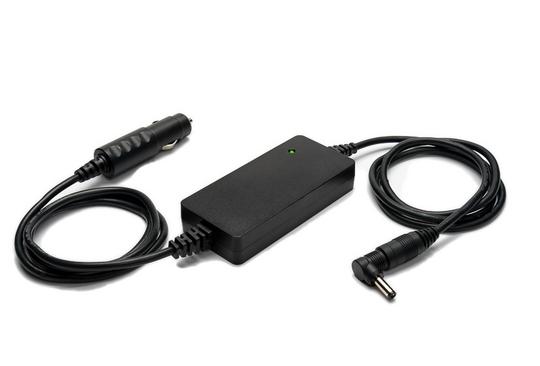

Der 90 Watt Auto-Adapter CAR90U für Pkws und Lkws.

CAR90U

90 Watt Auto-Adapter

  • Weiter Eingangsspannungsbereich 11-32V
  • Ultra kompakter und leichter Auto-Adapter
  • 90 Watt kontinuierliche Ausgangsleistung
  • Ausgangsspannung und -strom können über Multi-Connector-System (MCS) konfiguriert werden
  • Weltweite zulassungen
  • Höchste Sicherheitsstandards
  • Zum Gebrauch in Autos und LKWs
  • Optional mit 5W USB-A Buchse

Sie möchten weitere Informationen?

Produktdatenblatt CAR90U

Specification

Input
Voltage range11.00 - 32.00VDC
Switch off voltage10.00VDC
Standby currentTypical 40.00mA @ 11.00V input
Typical 80.00mA @ 32.00V input
Input fuse12.00A (in CLP)
ProtectionReverse polarity (input fuse CLP),
Under voltage protection
Over temperature protection
(latch-off reset)
Output
Voltage range5.00 - 24.00VDC nominal
Power

90.00W cont.
85.00W + 5.00W with optional USB-A

Initial set tolerance

±3% max.

Load regulation

- 80mV max. / A

Line regulation

±1% max.

Ripple & noise

< 0.20V pk-pk

Current limitConstant current, 6.00A max.
Protection

Short circuit
Over current protection (current limitation)
Over voltage protection (latch-off reset)
Over temperature protection (latch-off reset)

Environmental

CoolingConvection cooled
Temperature

Operating: -20°C to 40°C
Non-operating: -40°C to 85°C

Pressure & altitude

Operating: 1200hPa to 795hPa (max. 2000m above sea level)
Non-operating: 1200hPa to 115hPa (max. 15000m above sea level)

Humidity5 to 95% r.H., non condensing
General
Input connector

Cigarette lighter adapter (CLP)

Output connector

Customer-specific with multi connector system (MCS)

Efficiency

typical 96% at 100% load

MTBF

>20000h @ 25°C ambient temperature and GB per MIL-HDBK217F

Green procurementRoHS 2011/65/EU + 2015/863/EU
REACH 1907/2006
WEEE 2012/19/EU
Indicator green LED

On: Power on
Flashing: Failure
Off: Power off

Ingress protection rating

IEC60529, IP40

Regulatory approvalsEuropeCE
 United KingdomUKCA
 International

CB Report IEC60950-1

 USA & Canada

cULus UL60950-1

 Australia & New ZealandRCM
Electromagnetic emissionsEurope

EN55022 class B, EN55024

 USA & CanadaFCC15 class B
Electromagnetic immunityESD immunity

IEC61000-4-2, 4kV contact / 8kV air

 Electromagnetic field immunity

IEC61000-4-3, 80-2700MHz, 3V/m, AM 80%/1kHz

 Electrical fast transient/burst immunity test

IEC61000-4-4, +/-1kV, 5/50ns

 ISO-Impulses

ISO7637-2, pulses 1, 2a, 2b, 3a, 3b, 4

- Other approvals on request

Housing dimensions (LxWxH)

115.00 x 53.70 x 21.50mm, without cables and connectors

Input cable length

100cm ±5%

Output cable length

100cm ±5%

Weight

250g, without cables and connectors


CAR90 ist weltweit zugelassen

United Kingdom
