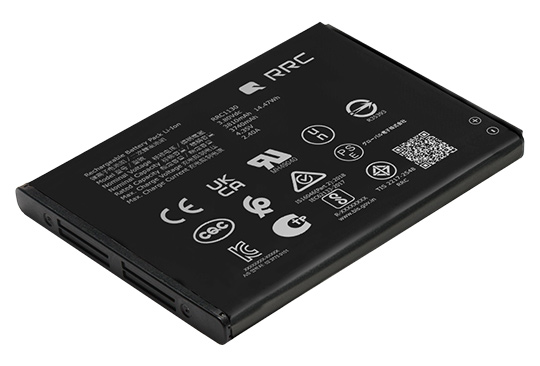

Picture only for reference

RRC1130

Flaches Lithium-Polymer Batteriepack RRC1130 (1S1P)
mit 3.80V / 3.81Ah / 14.47Wh

  • Weltweite Zulassungen und Erfüllung von Sicherheitsstandards
  • Keine Entwicklungskosten, Time-to-Market
  • Smarte Lithium-Polymer-Batterie mit zahlreichen Features und I2C Kommunikation
  • Hohe Entladeströme
  • State-of-the-art Lithium-Polymer-Zelle mit höchster Energiedichte
  • JEITA-Ladeprofil Optimierung
  • Zahlreiche und redundante Safety-Features
  • Erhöhter ESD-Schutz bis zu 8.00KV
  • Life expectancy: Bis zu 80% der Anfangskapazität nach 800 Zyklen.

Bitte beachten Sie, dass die aufgeführten Produktinformationen und Downloads für die jeweils neueste Version der RRC1130 gelten. Vorherige Versionen finden Sie hier.

Sie möchten weitere Informationen?

Produktdatenblatt RRC1130

General
Delivery status (battery capacity)<30%
Operating temperature0°C to 45°C (charge)
-20°C to 60°C (discharge)

Storage temperature

-20°C to 60°C max.
-20°C to 25°C recommended

Compliance information

IEC62133 / CE / UL2054 / FCC / UKCA / PSE / KC / BSMI / GOST-R / CMIM / CQC / RCM / BIS / TISI / UN38.3 / RoHS / REACH

Communication bus

I²C

Electrical Parameters

Nominal voltage

3.80V

Nominal capacity

3.81Ah

Initial impedance

<60mΩ @ 1kHz at 25°C

Max. charge current

2.40A

Max. charge voltage

4.35V

Cont. discharge current

3.00A

Battery cell configuration

1S1P

Battery chemistry

Lithium Polymer (Li-Po)

Battery Dimensions

Length

83.95mm ±0.25

Width

61.23mm ±0.20

Thickness

6.73mm ±0.10

Weight

65g

Contacts

- , SDA (NTC),+,  SCL

Ingress protectionIP40
Safety Features

CUV (Cell Under Voltage)

Protection against deep discharge

COV (Cell Over Voltage)

Protection against over charge


FLATPAQ RRC1130 ist weltweit zugelassen
