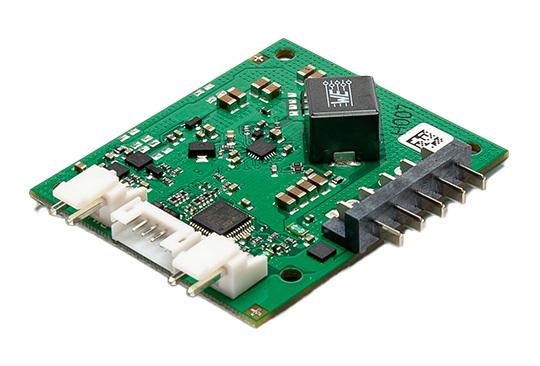

RRC-PMM240

Lademanagement-Modul für mobile Applikationen

Nicht empfohlen für neue Designs



Bitte verwenden Sie statt dessen unser neues RRC-PMM20 Power Management Modul.
  • 240 Watt max. Ausgangsleistung zur Anwendung
  • 82 Watt max.Ladeleistung für die Batterie
  • Automatische Selektion der Leistungsquelle
  • Weiter DC Eingangsspannungsbereich
  • Passend für Standard-Batteriepacks im Formfaktor RRC20xx

Sie möchten weitere Informationen?

Downloads RRC-PMM240

Produktdatenblatt RRC-PMM240

Specification

Power supply Input
Input voltage rangeMin. Battery charge voltage +1.00V
Max. 24.00VDC
Total input power192.00W max.
Input current8.00A max.
Input fuse12.00A
PortectionReverse polarity, short current



Application Output
Output voltage range

Equal to DC input voltage if external DC power supply is present.
Equal to battery voltage if no external DC power supply is present.

Total output power240.00W max.
Output current10.00A max.
Output fuse12.00A



Power Management
Automatic power source selection with seamless transition between external DC power supply and battery



Battery Input / Output
Battery charge voltageUp to 19.20V (± 0.5%)
Battery charge current

Up to 6.20A (± 3%)

Battery charge power

Up to 82.00W

Battery discharge current

10.00A max.

Protection

Battery short circuit, over temperature, over voltage, over current & reverse polarity

Standby current

Typical 1.00mA



Environmental Condition & User Interface
Operating Temperature

-20° to +60°C

Transport & Storage Temperature

-20° to +60°C

Relative Humidity

5% - 95% non-condensing

Ambient pressure

500-1070hPa



User Interface
UI via GPIO / available info

Charging: yes/no
External DC power supply: yes/no
Battery/hardware error

SMBus commands to set

Charge current limit, input current limit

Battery information available

via standard SMBus



Battery architectureDC input voltagePower supply wattage
@ 4.00A max input current
Power supply wattage
@ 8.00A max input current

1SxP

6.00VDC

≥30.00W

≥60.00W

2SxP

12.00VDC

≥48.00W

≥96.00W

3SxP

15.00VDC

≥64.00W

≥128.00W

4SxP

19.00VDC

≥80.00W

≥160.00W



Reglatory Approvals
International

IEC60601-1(ed.3), IEC60601-1(ed.3);am1

USA

ANSI/AAMI ES60601-1:2005/(R)2012

Canada

CAN/CSA-C22.2 NO. 60601-1:14



Mechanical Details
Boards  dimensions (LxWxH)

60.00mm x 50.00mm x 11.00mm, without cables and connectors

Weight

22g

Connectors

DC input & DC output (2 pin), User interface (6 pin), Battery connector (5 pin smart battery connector)
