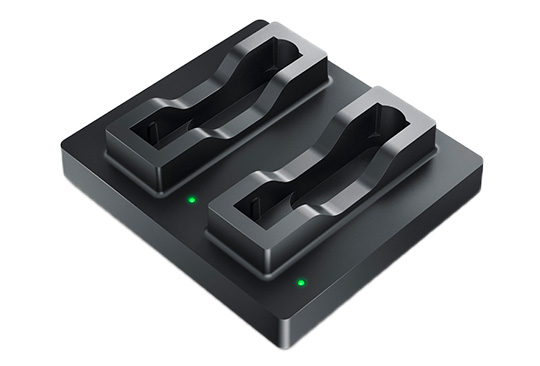

Zweifach Batterieladegerät RRC-SMB-DBC mit zwei Ladeschächten für Standard-Batteriepacks der Bauform RRC20xx oder baugleiche SMBus-kompatible Batterien.

RRC-SMB-DBC

Zweifach Standard-Batterieladegerät für SMBus kompatible Batterien

  • Universelles Schnellladegerät mit zwei Ladeschächten
  • Für Standard-Batteriepacks der Bauform RRC20xx oder baugleiche SMBus-kompatible Batterien
  • Optimierter Ladeprozess für RRC Batterien:
    • Höhere Ladezyklen
    • Schnelleres Laden
  • Einfache Bedienbarkeit – Plug and Play
  • Automatische Identifikation des Batterietyps und Anpassung der Ladeparameter
  • Externes AC/DC Netzteil für weltweiten Einsatz
  • Länderspezifische AC Eingangskabel auf Anfrage erhältlich
  • Optionaler DC/DC Auto-Adapter verfügbar

Sie möchten weitere Informationen?

Produktdatenblatt RRC-SMB-DBC

Specification RRC-SMB-DBC

Input
Voltage range19.00 - 26.00VDC
Current3.40A max.
Power65.00W
Output
Voltage range

0 - 17.40VDC

Current

0 – 4.80A

Voltage tolerance±1% max.
Current tolerance

±10% max. @1A, ±3% max. @4A

Charge power30W max. per Bay
Protection

Short circuit, Overtemperature shutdown,
Input / Output overcurrent

Environmental
CoolingConvection cooled
Temperature

Operating: 0°C to 40°C
Non-operating: -30°C to 80°C

Pressure & Altitude

Operating: 1060hPa to 533hPa (-382m to 5000m)
Non-operating: 1060hPa to 533hPa (-382m to 5000m)

Humidity (non-condensing)

Operating: 8% to 90% r.H.

Non-operating: 5% to 95% r.H.

General
Efficiency~95% to 100% load
Battery type

For standard battery packs in form factor RRC20XX or similar SMBus compliant batteries

Green procurement

RoHS 2011/65/EU + 2015/863

REACH 1907/2006
WEEE 2012/19/EU
Chinese RoHS

IndicatorMulti-color LED (green, red, orange)
Housing dimensions (LxWxH)155.00 x 175.00 x 43.00mm
Weight325g (without power supply)

One time Red/Orange/Green

Selftest: Charger is ready for use.

Red/Green blinking

Battery recognition and initialization.

Orange blinking

The battery is currently being calibrated.

Orange light

The inserted battery is of the correct type and is currently being charged.

Green light

The battery is charged and can be removed for use.

Red blinking

The battery is too hot or too cold to be charged without damage. If the battery is too cold it will be charged as soon as it has warmed up sufficiently. If the battery is too hot it should be removed to cool down.

Red light

The battery is damaged or it is a conventional battery which cannot be recharged.



In combination with included external AC/DC power supply (PS65)



Regulatory approvals

EuropeEN62368-1 (CE)
 InternationalIEC62368-1 (CB)

Electromagnetic Emissions

EuropeEN55011, EN55032, level B
 USAFCC15, class B

Electromagnetic Immunity

ESD immunityEN/IEC61000-4-2
 Electromagnetic field immunity EN/IEC61000-4-3
 EFT / BurstEN/IEC61000-4-4
 Surge

EN/IEC61000-4-5

 Conducted Immunity

EN/IEC61000-4-6

 Magnetic Fields

EN/IEC61000-4-8

 Voltage dips, short instrumentations & voltage variations

EN/IEC61000-4-11

 Immunity characteristics

EN55024

Specification external AC/DC power supply (PS65)

Input

Voltage range

100 - 240VAC

Current

1.70A max.

Stand by power

< 0.21W @ no load
Output
Voltage range19.00VDC ± 5%
Power

65.00W max.

Current range

3.42 A

Protection

Over voltage, over current, short circuit, over temperature

Standard output connector

DC barrel jack (5.50 x 2.50 x 11.00mm)

Housing dimensions (LxWxH)

95.00 x 50.00 x 25.40mm

Weight

270g

Cable length1600mm ±50mm

Approvals

EuropeCE
 InternationalCB
 USA & CanadacULus


Australia & New Zealand

RCM
 Russia & Eurasian Customs UnionEAC
 KoreaKC
 ChinaCCC
 JapanPSE
 IndiaBIS
 TaiwanBSMI
 MexicoNOM
 ArgentinaIRAM
 South AfricaSABS
 SingaporeSafety Mark
 United KongdomUKCA
 MoroccoCMIM

Das Standard Batterieladegerät RRC-SMB-DBC ist weltweit zugelassen
