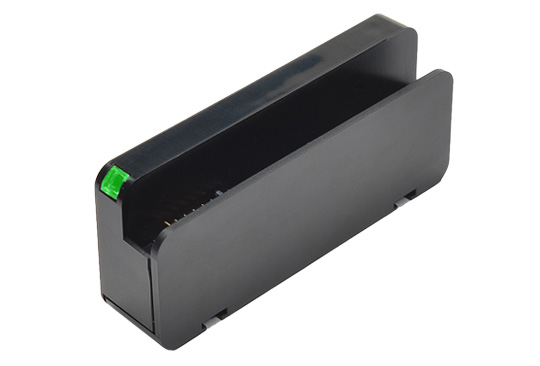

RRC-SMB-FPC

40W Batterieladegerät für RRC2130, RRC2140

  • Batterieladegerät mit einem Schacht
  • Geeignet für die Standard-Batteriepacks RRC2130 und RRC2140
  • Optimierter Ladeprozess für RRC Batterien:
    • Höhere Ladezyklen
    • Schnelleres Laden
  • Einfache Bedienbarkeit – Plug and Play
  • Externes Steckernetzteil für weltweiten Einsatz
  • Länderspezifische AC Eingangskabel auf Anfrage erhältlich

Sie möchten weitere Informationen?

Produktdatenblatt RRC-SMB-FPC

Specification RRC-SMB-FPC

Input
Voltage18.00 - 26.00VDC
Current2.50A max.
Power40.00W
ProtectionOver current (fuse protected), under voltage
Output
Voltage range

0 - 17.40VDC

Current range

0 - 4.00A

Voltage tolerance±1% max.
Current tolerance

±10% max. @1.00A, ±3% max. @4.00A

Protection

Short circuit, Over temperature shutdown, Input/output over current

Environmental
CoolingConvection cooled
Temperature

Operating: 0°C bis 40°C
Non-operating: -30°C to 80°C

Pressure & Altitude

Operating: 1060hPa to 795hPa (-382m to 2000m)
Non-operating: 1060hPa to 572hPA (-382m to 5000m)

HumidityOperating: 8% to 90% r.H.
Non-operating: 5% to 95% r.H.
General
Efficiency~95% at 100% load
IndicatorMulti-color LED (green, red, orange)
Battery type

Standard battery packs RRC2130 and RRC2140

Green procurementRoHS 2011/65/EU + 2015/863/EU
REACH 1907/2006
WEEE 2012/19/EU
Chinese RoHS
Housing dimensions (LxWxH)

88.50 x 38.50 x 19.90mm

Weight36g (excluding power supply)

One time Red/Orange/Green

Selftest: Charger is ready for use

Red/Green blinking

Battery recognition and initialization

Orange light

The inserted battery is of the correct type and is currently being charged

Green light

The battery is charged and can be removed for use

Red blinking

Battery detection phase

Red light

No battery inserted, battery over/under temperature-, charger over temperature-,
battery over voltage-, battery charge timer time-out-error or input voltage too low



In combination with included external AC/DC power supply (PS65)



Regulatory approvals

EuropeEN62368-1 (CE)
 InternationalIEC62368-1 (CB)

Electromagnetic Emissions

Europe

EN55032

 USAFCC15 class B

Electromagnetic Immunity

ESD immunityEN/IEC61000-4-2
 Electromagnetic field immunity EN/IEC61000-4-3
 EFT / BurstEN/IEC61000-4-4
 Surge

EN/IEC61000-4-5

 Conducted Immunity

EN/IEC61000-4-6

 Voltage dips, short instrumentations & voltage variationsEN/IEC61000-4-11
 Harmonic current emissionsEN/IEC61000-3-2
 Voltage changes, voltage fluctuations and flickerEN/IEC61000-3-3
 Immunity characteristicsEN55035

Specification external AC/DC power supply (PS65)

Input

Voltage range

100.00 - 240.00VAC ±10%, 50-60Hz

Current

1.70A max.

Stand by power

< 0.21W @ no load
Output
Voltage range

19.00VDC ± 5%

Power

65.00W max.

Current range

3.42A max.

Protection

Over voltage, over current, short circuit, over temperature

Environmental
Temperature

Operating: 0°C to 40°C
Non-operating: -10°C to 70°C

General
Efficiency

California's Energy Efficiency Level VI

Ripple & Noise

0.30V (p-p)

Standard output connector

DC barrel jack, 5.50 x 2.50 x 11.00mm

Housing dimensions (LxWxH)

95.00 x 50.00 x 25.40mm

Weight

270g

Cable length1600mm ±50mm

Approvals

EuropeCE
 InternationalCB


USA & Canada

cULus


Australia & New Zealand

RCM
 Russia & Eurasian Customs UnionEAC
 KoreaKC
 ChinaCCC
 JapanPSE
 IndiaBIS
 TaiwanBSMI
 MexicoNOM
 SingaporeSafety Mark
 United KingdomUKCA
 MoroccoCMIM
