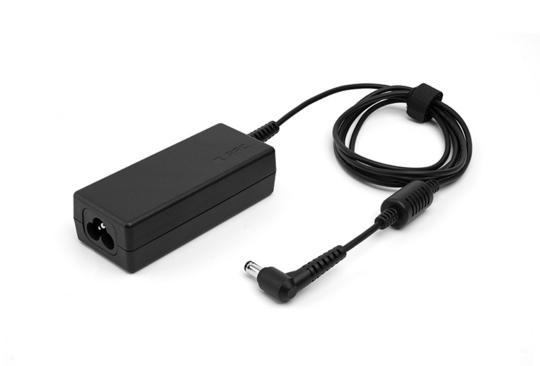

PS45

45W AC/DC switch mode power supply

  •  45,00W Desktop power supply for worldwide use
  • Country specific AC input cables available

Are you looking for more information?

Request product

Downloads PS45

PS45 Data Sheet

PS45

Specification

Input
Voltage 100.00 – 240.00VAC ±10%, 50-60Hz
Current0.63A max
Standby power< 0.08W @ no load
Output
Voltage 19.00VDC ± 5%
Power45.00W max.
Current2.37A max.
ProtectionShort circuit, over-voltage, over-current, over-temperature
Environmental
Ambient temperature

Operation:

0°C to 35°C

Storage:

-20°C to 85°C

Pressure & Altitude

1060hPa to 533hPa

-382m to 5000m

1060hPa to 533hPa

-382m to 15000m

Humidity (non-condensing )8% to 90% r.H.5% to 90% r.H.
General
EfficiencyCalifornia's Energy Efficiency Level VI
CoolingConvection cooled
Green procurement

RoHS 2011/65/EU + 2015/863/EU

REACH 1907/2006
WEEE 2012/19/EU
Chinese RoHS

MTBF100,000h at 25°C ambient
Ripple & Noise380mV (p-p)
Housing dimensions (LxWxH)95 x 40 x 26,5mm
Output cable length1600mm ±50mm
Weight155g ± 5%
AC input socketIEC 320 C6 Type
Standard output connectorDC barrel jack, 5.5 x 2.5 x 10mm

Approvals

EuropeEN62368-1 (CE)
 International

IEC62368-1 (CB)

 USA & Canada

FCC, cULus



Australia & New Zealand

RCM
 Russia & Eurasian Customs UnionEAC
 KoreaKC
 ChinaCCC
 JapanPSE
 IndiaBIS
 TaiwanBSMI
 ThailandTISI
 MexicoNOM
 SingaporeSafety Mark
 ArgentinaIRAM
 South AfricaSABS
 MoroccoCMIM
 Israel

SII



Electromagnetic EmissionsEuropeEN55032, EN55035
 USAFCC15 class B
 CanadaICES-003
 KoreaKCC
Electromagnetic ImmunityESD immunityEN/IEC61000-4-2
 Electromagnetic field immunityEN/IEC61000-4-3
 EFT / BurstEN/IEC61000-4-4
 SurgeEN/IEC61000-4-5
 Conducted ImmunityEN/IEC61000-4-6
 Magnetic FieldsEN/IEC61000-4-8
 Voltage dipsEN/IEC61000-4-11
Energy Efficiency DOE
