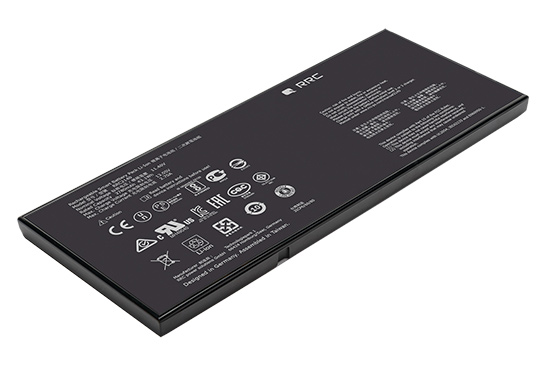

The extremely thin and high performance 3S1P RRC standard battery pack RRC2140 from the FLATPAQ product line.
The extremely thin and high performance RRC standard battery pack RRC2140 from the FLATPAQ product line with 11.40V/3.88Ah/44.20Wh.

RRC2140

Standard battery pack RRC2140 (3S1P)
with 11.40V / 3.88Ah / 44.20Wh

  • Worldwide approvals and certification of safety standards
  • No development costs, fast time-to-market
  • Smart batteries with numerous features according to the SMBus specification
  • State-of-the-art lithium-ion cells with the market’s highest energy density
  • High discharge performance
  • JEITA charging profile optimization
  • Numerous and redundant safety features, e.g.:
    • CUV (Cell Under Voltage): protection against deep discharge
    • COV (Cell Over Voltage): protection against over charge
    • OTC (Over Temperature in Charge): Protection against overheating while charging
    • OTD (Over Temperature in Discharge): Protection against overheating during discharging
  • Increased ESD protection up to 8kV
  • SHA-1 cryptosystem to prevent plagiarism
  • Life expectancy: Up to 80% of initial capacity after 800 cycles

Are you looking for more information?

RRC2140

General
Delivery status (battery capacity)<30%

Compliance information

IEC62133 / CE / UL2054 / FCC / PSE / KC / Gost / EAC / CQC / RCM / BIS / TISI / BSMI / UN38.3 / RoHS / REACH

Operating temperature0°C to 45°C (charge)
-20°C to 60°C (discharge)

Storage temperature

-20°C to 60°C max.
-20°C to 25°C recommended

Electrical Parameters

Nominal voltage

11.40V

Nominal capacity

3.88Ah

Initial impedance

<200mΩ @ 1kHz at 20°C

Max. charge current

2.70A

Max. charge voltage

13.05V

Cont. discharge current3.78A

Max. discharge current

5.67A

Battery Dimensions

Length

212.90mm +0.50/-0.50

Width

86.20mm +0.40/-0.40

Thickness

8.35mm +0.25/-0.25

Weight

255g

Contacts

+,+,C,D,T,-,-

Ingress protectionIP40
Safety Parameters PCM

Overcharge detection voltage / cell

4.39V

Overcharge release voltage / cell4.20V

Overdischarge detection voltage / cell

2.75V

Overdischarge release voltage / cell3.25V

Overcharge detection current

3.10A

Overdischarge detection current

6.00A


FLATPAQ RRC2140 is approved worldwide
