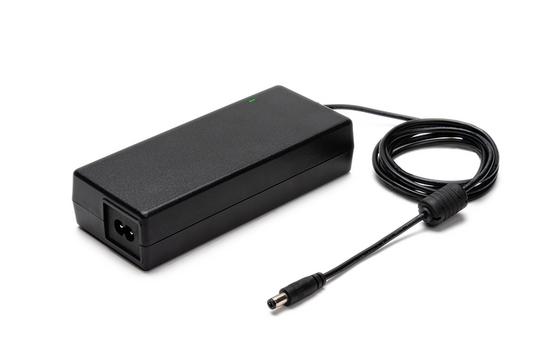

Das medizinische 90 Watt AC/DC Netzteil PS90M für einen weltweiten Einsatz.

PS90M

90 Watt AC/DC switch mode power supply

  • Medical power supply for worldwide use
  • Simple operation
  • Country specific AC input cables available
  • LED for status indication

Are you looking for more information?

Downloads PS90M

PS90M

Specifications

Input
Voltage range100.00 to 240.00VAC, 50 to 60 Hz
Input current1.20A max.
Stand by power< 0.21W @ no load
Output
Voltage range

24.00VDC ± 5%

Power90.00W max.
Current3.75A max.
Ripple & noise<0.24V pk-pk
Protection

Short circuit
Over current protection
Over voltage protection
Over temperature protection

Environmental
CoolingConvection cooled
TemperatureOperating: 0°C to 40°C
Non-operating: -20°C to 80°C
Pressure & AltitudeOperating: 1060hPa to 540hPa (max. 5000m above sea level)
Non-operating: 1060hPa to 540hPa (max. 5000m above sea level)
HumidityOperating: 20 to 80% RH
Non-operating: 10 to 90% RH
General
AC Inlet

IEC320 C8 AC Inlet

Output connector

DC barrel jack, 5.50 x 2.50 x 9.50mm

Efficiency

California's Energy Efficiency Level VI

MTBF300,000h at 25°C ambient
Green procurement

WEEE 2012/19/EU
RoHS 2011/65/EU + 2015/863/EU
REACH 1907/2006

Regulatory approvalsEurope

ANSI/AAMI/IEC/EN ES60601-1:2012 (60601 edition 3.1)

 USA & Canada

Means of Protection: 2x MOPP
UL recognized

EMCEurope, USA, United KingdomIEC 60601-1-2:2014 (edition 4.0)
CE, FCC, UKCA
The EMC assessment shall be conducted for the end system configuration.
Energy efficiency

CEC, DoE Level VI

Housing dimensions (LxWxH)

151.00 x 64.00 x 34.90mm, without cables and connectors

Input cable length

on request

Output cable length

1500.00mm ±30.00mm

Weight

450g


Power supply PS90M is approved worldwide
