Leistungsstarkes 2S2P RRC Standard-Batteriepack RRC2057 aus der Produktreihe POWERPAQ.

RRC2057

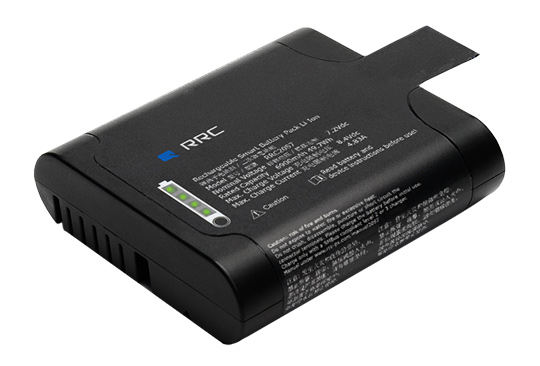

Standard battery pack RRC2057 (2S2P)
with 7.20V / 6.90Ah / 49.70Wh

  • Worldwide approvals and certification of safety standards
  • No development costs, fast time-to-market
  • Smart batteries with numerous features according to the SMBus specification
  • Integrated LED State of Charge (SoC) indicator
  • State-of-the-art lithium-ion cells with the market’s highest energy density
  • High discharge performance
  • JEITA charging profile optimization
  • Numerous and redundant safety features, e.g.:
    • CUV (Cell Under Voltage): protection against deep discharge
    • COV (Cell Over Voltage): protection against over charge
    • OTC (Over Temperature in Charge): Protection against overheating while charging
    • OTD (Over Temperature in Discharge): Protection against overheating during discharging
  • Increased ESD protection up to 8kV
  • SHA-1 cryptosystem to prevent plagiarism

Please note that the listed product information and downloads are valid for the latest version of the RRC2057. Previous versions can be found here.


Are you looking for more information?

Product data sheet RRC2057

General
Delivery status (battery capacity)30%
Operating temperature0°C to 45°C (charge)
-20°C to 60°C (discharge)

Storage temperature

-20°C to 50°C max.
-20°C to 25°C recommended

Compliance information

CE / UL2054 / FCC / PSE / KC / Gost / EAC / CQC / RCM / IEC62133 / UN38.3 / ROHS / REACH / BIS / TISI / BSMI

Electrical Parameters

Nominal voltage

7.20V

Nominal capacity

6.90Ah

Initial impedance

<180mΩ @ 1kHz at 25°C

Max. charge current

4.83A

Max. charge voltage

8.40V

Cont. discharge current

9.50A

Peak discharge currenttba

Life expectancy @25°C
3.20A Charge/3.20A Discharge

300 cycles with ≥ 75% of initial capacity

Battery Dimensions

Length

85.10mm +0.25/-0.25

Width

77.40mm +0.25/-0.25

Thickness

22.40mm +0.60/-0.40

Weight

230g

Contacts

+, D, C, T, -

Safety Parameters PCM

Overcharge detection voltage / cell

4.23V

Overcharge release voltage / celltba

Overdischarge detection voltage / cell

2.50V

Overdischarge release voltage / celltba

Overcharge detection current

6.70A

Overdischarge detection current

10.50A


POWERPAQ RRC2057 is approved worldwide
