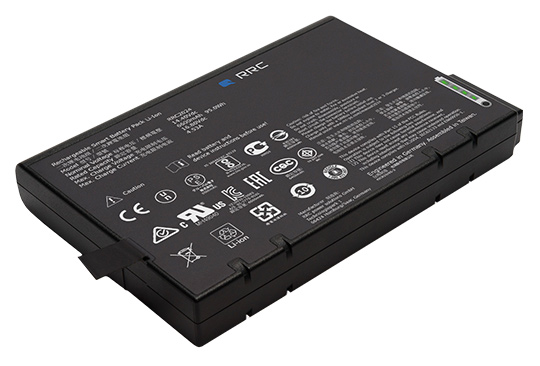

Leistungsstarkes 4S3P RRC Standard-Batteriepack RRC2024 aus der Produktreihe POWERPAQ.

RRC2024

Standard battery pack RRC2024 (4S3P)
with 14.40V / 6.60Ah / 95.00Wh

  • Worldwide approvals and certification of safety standards
  • No development costs, fast time-to-market
  • Smart batteries with numerous features according to the SMBus specification
  • Integrated LED State of Charge (SoC) indicator
  • State-of-the-art lithium-ion cells with the market’s highest energy density
  • High discharge performance
  • JEITA charging profile optimization
  • Numerous and redundant safety features, e.g.:
    • CUV (Cell Under Voltage): protection against deep discharge
    • COV (Cell Over Voltage): protection against over charge
    • OTC (Over Temperature in Charge): Protection against overheating while charging
    • OTD (Over Temperature in Discharge): Protection against overheating during discharging
  • Increased ESD protection up to 8kV
  • SHA-1 cryptosystem to prevent plagiarism
  • Life expectancy: Up to 80% of initial capacity after 800 cycles

Please note that the listed product information and downloads are valid for the latest version of the RRC2024. Previous versions can be found here.

Are you looking for more information?

Product data sheet RRC2024

General
Delivery status (battery capacity)<30%

Compliance information

IEC62133 / CE / UL2054 / FCC / PSE / KC / Gost / EAC / CQC / RCM / BIS / TISI / BSMI / UN38.3 / RoHS / REACH


Operating temperature0°C to 45°C (charge)
-20°C to 60°C (discharge)

Storage temperature

-20°C to 50°C max.
-20°C to 25°C recommended

Electrical Parameters

Nominal voltage

14.40V

Nominal capacity

6.60Ah

Initial impedance

<150mΩ @ 1kHz at 25°C

Max. charge current

4.53A

Max. charge voltage

16.80V

Max discharge current

10.00A

Battery Dimensions

Length

167.20mm +0.50/-0.50

Width

107.20mm +0.40/-0.30

Thickness

21.51mm +0.30/-0.50

Weight

600g

Contacts

+, D, C, T, -

Ingress protectionIP40
Safety Parameters PCM

Overcharge detection voltage / cell

4.30V

Overdischarge detection voltage / cell

2.50V

Overcharge detection current

6.45A

Overdischarge detection current

11.00A


POWERPAQ RRC2024 is approved worldwide
